DA3S RWD Drift Machine Unleashed Ultimate Slide Kit! Experience the Thrill!

Alright partner, are you ready to lasso yourself some pure Americana These ain't just any ol' thing, friend, these are the real deal, a slice of sunshine, a whisper of the open road, a taste of freedom itself. Get ready to feel that all-American pride, because this is the stuff legends are made of. Yeehaw, grab yours before they ride off into the sunset

$175.00 $349.99

num:

description

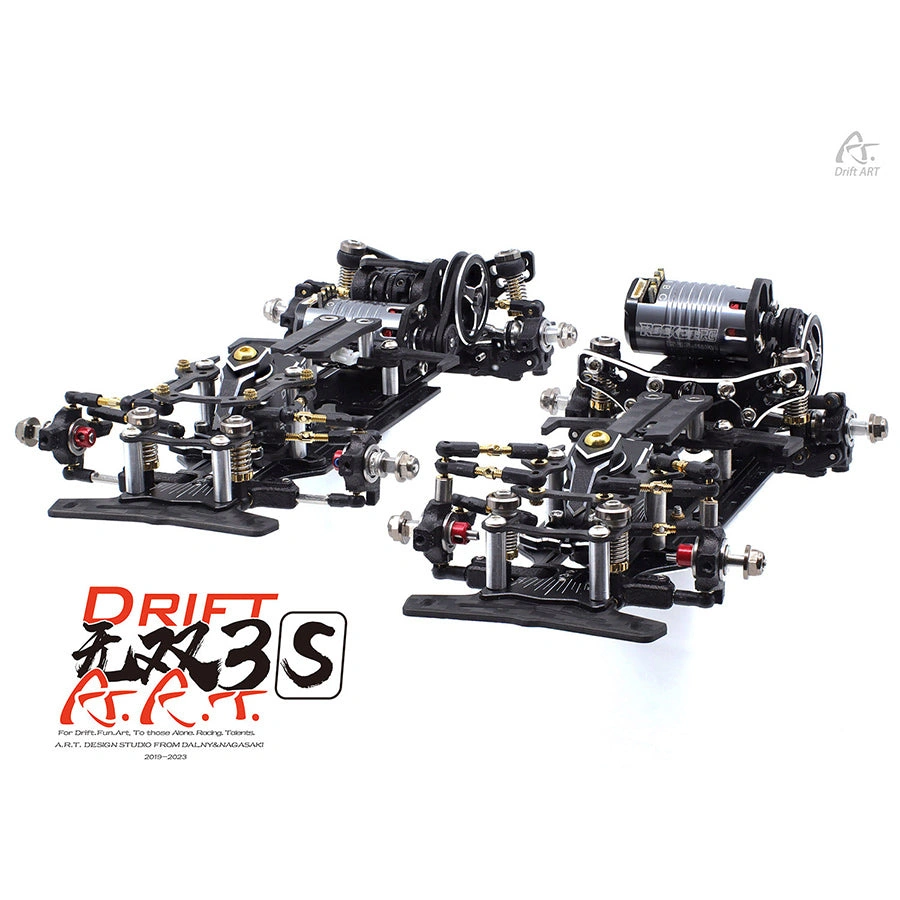

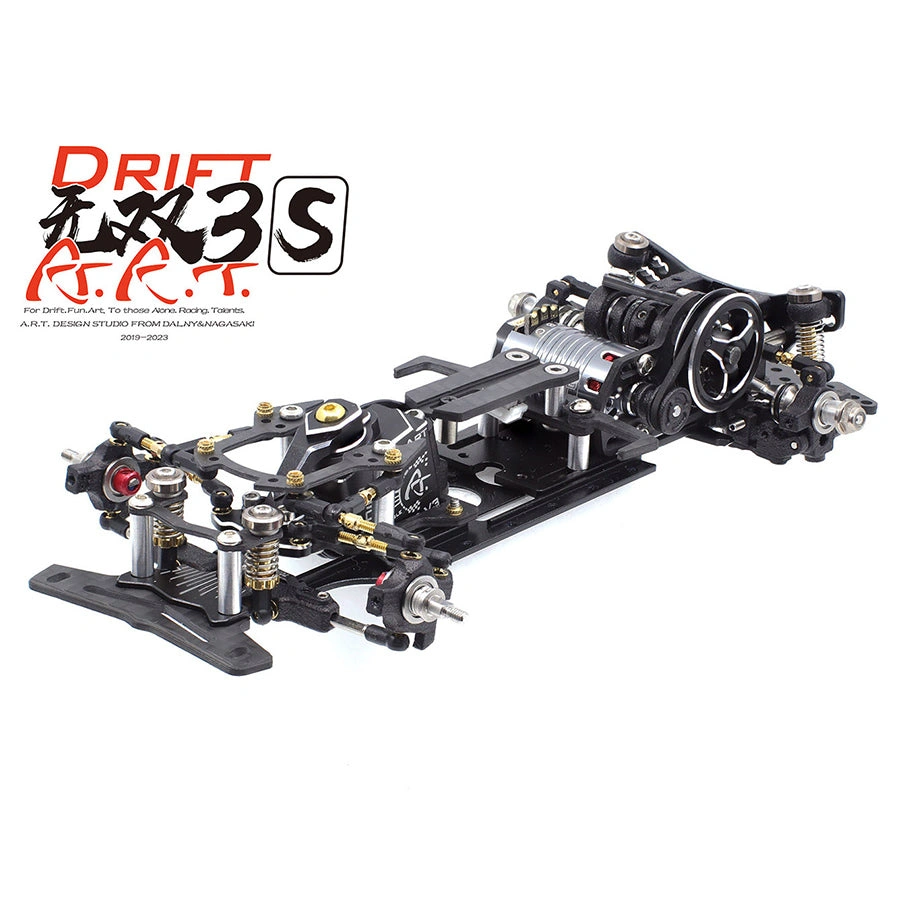

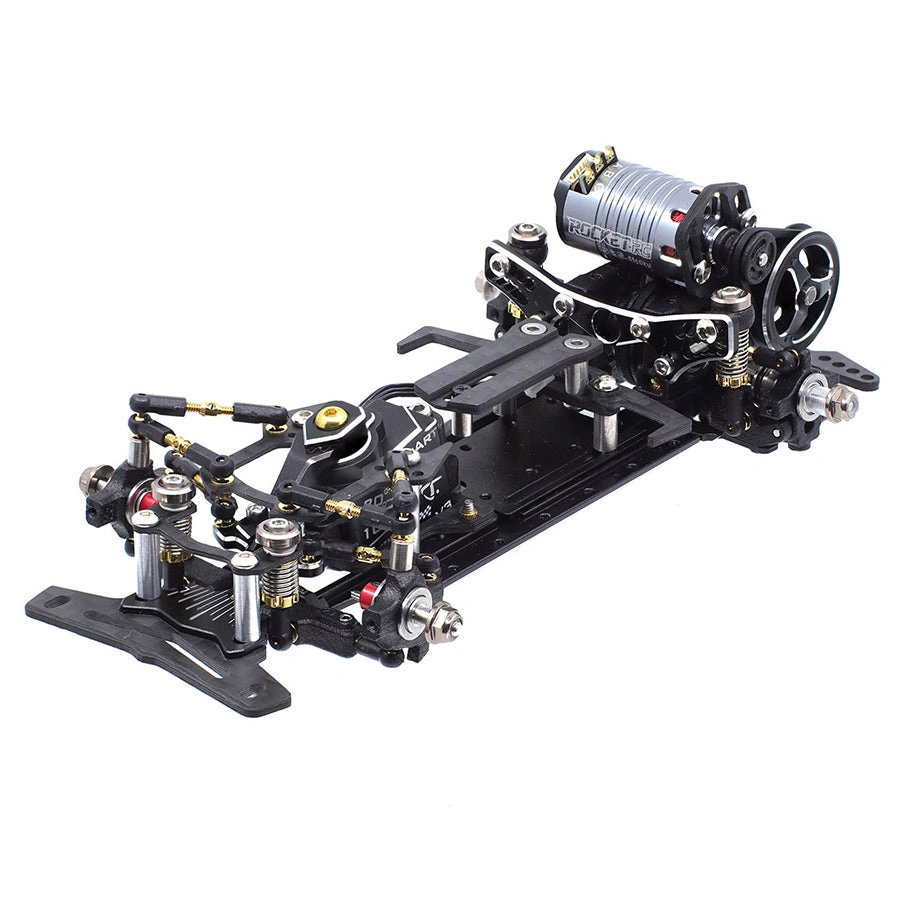

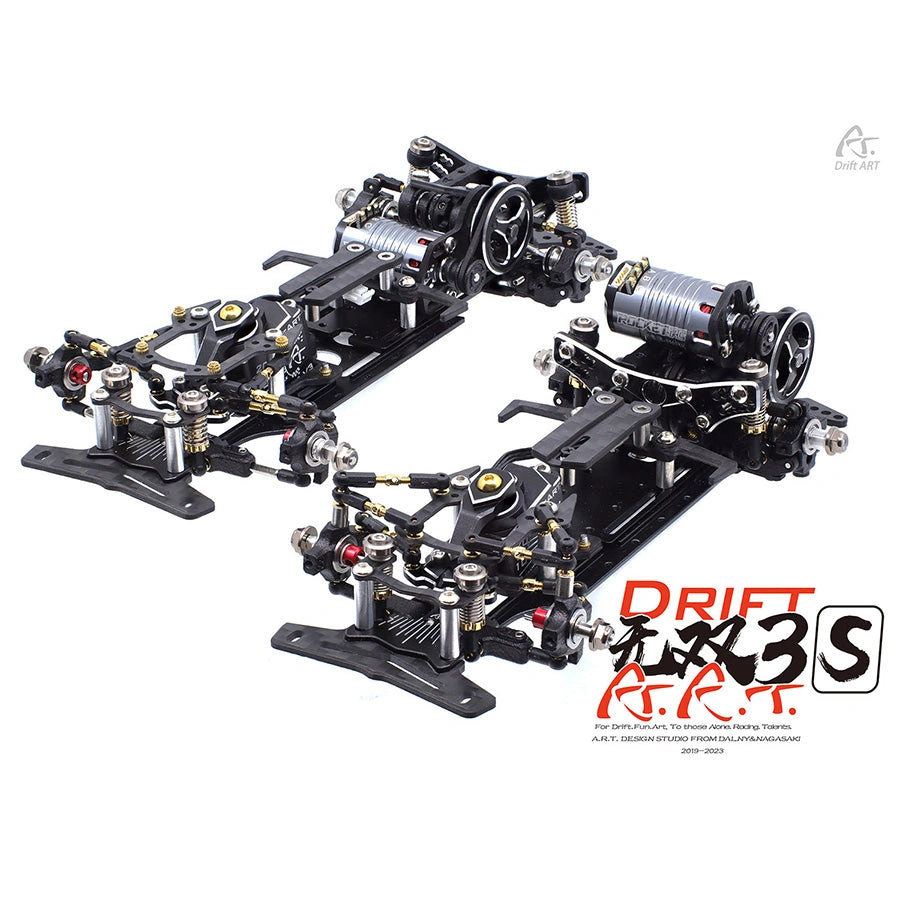

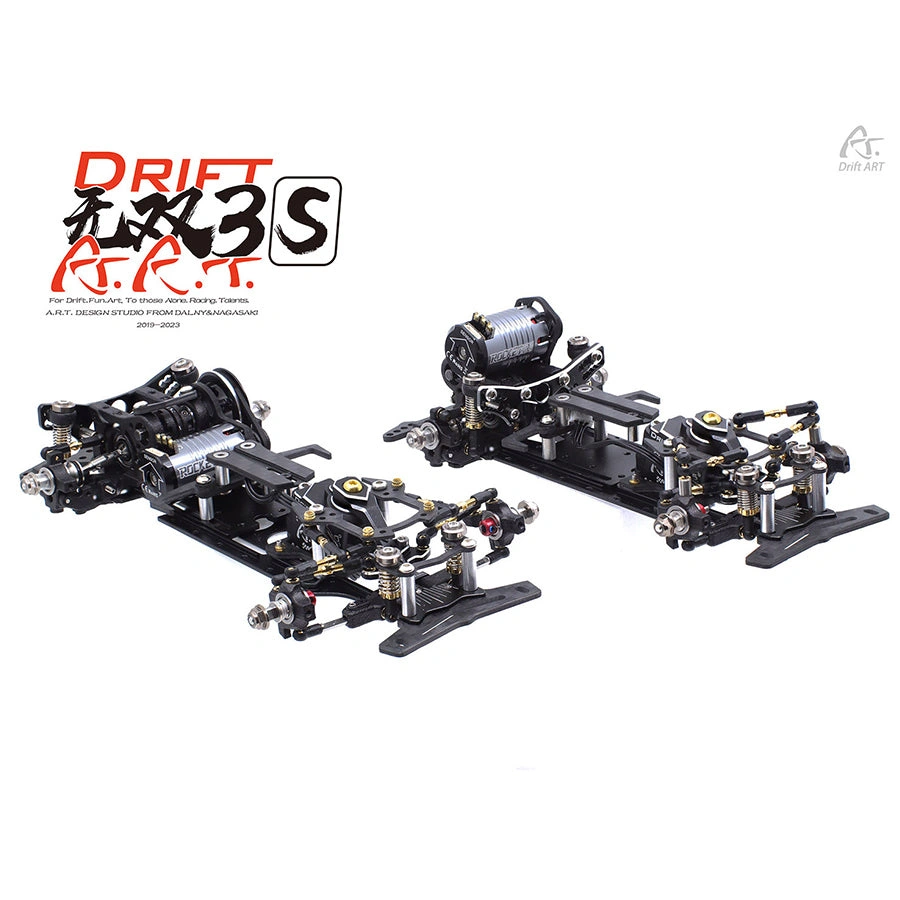

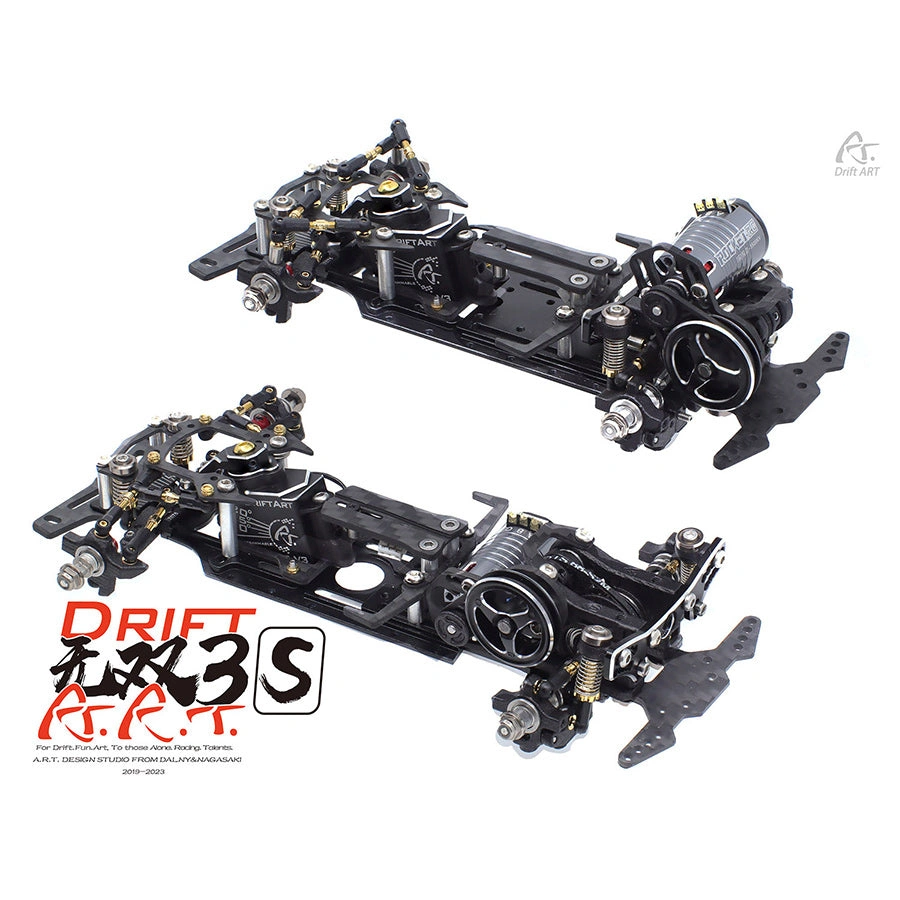

Drift Art (#99030) DA3S New Generation Mini RWD Drift Chassis Kit

Package Content: Assembly chassis kit only

Feature:

The DA3S is equipped with some key metal parts as standard, mainly made of 7075 aluminum alloy and 6061 aluminum alloy, with high precision and quality. And the adjustability is excellent!
Compatible with 1:28 and 1:24 car bodies.
Compared with the previous Drift ART kits, the difficulty of DA3S assembly is reduced by 50%. The swing arms of DA3S has been pre-assembled without grinding, which is not only easy to use, but also smooth.
Equipped with an original design “folding spacer”, it is convenient for the user to lower the play of the swing arms easily.
In terms of parts packaging , package is carried out according to the assembly steps, and the user assembles the kit according to the order of the parts package, which is easy and clear!
New Dual Vector foil, 3D steering system
DA3S is equipped with 7075 adjustable servo arm - new DVF.
Equipped with adapter rings, not only support metal servos, but also suitable for plastic servos.
The V-shaped track is adopted, and the two sides are perfectly symmetrical after installation.
The locking angle of the screw is optimized, the screw has been anti-loosening treatment, and can be easily installed to the middle angle.
The appearance is more coordinated, more natural and more imposing.
DVF is Drift ART's original and pioneering core feature, which makes the front steering geometry remain good in the case of large Camber and large Caster. It is reflected in the operation of the shock works, the caster angle and toe angle are more stable.

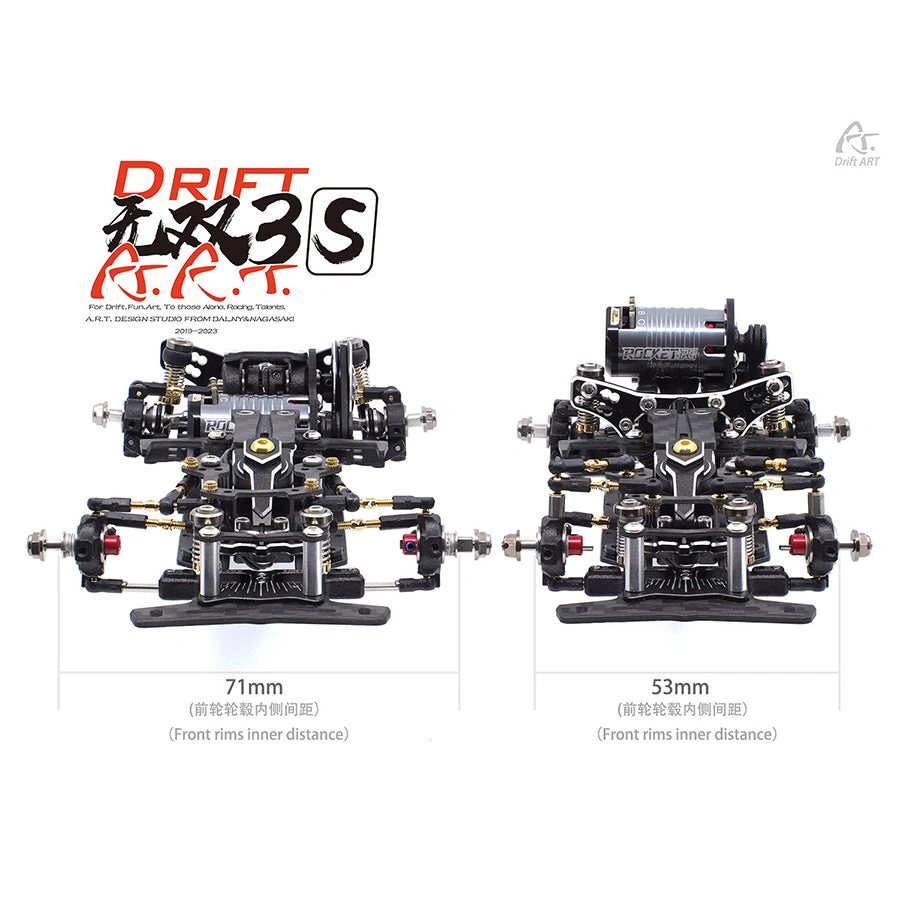

New Offset Master - The offset of the steering knuckle is adjustable, no need to pick the wheel hub, and adapt to any degree of wheel hub. Achieve low offset while maintaining a large steering angle. The trade-off between steering angle and offset is balanced.
The geometry of the steering cup is optimized, and the Ackermann angle is more balanced.
Extendable dog bone (stainless steel) + Extendable rear swing arm. The dog bone can be stretched by 3mm. Standard stainless steel telescopic dog bone UX-CVD, wear-resistant, advanced design, advanced technology.
The rear straight Axle has different mounting holes, which can be further extended by 1mm.
The rear swing arm and the seat can be extended by 3mm on each side, and 6mm for total.
Transformable Drive Shaft (7075 aluminum alloy)
Classic craftsmanship, High concentricity, and effective anti-skid.
Can be expanded into a toothed belt to further enhance the explosive power. (Option parts sold separately)
It can be extended to gear transmission in the future.

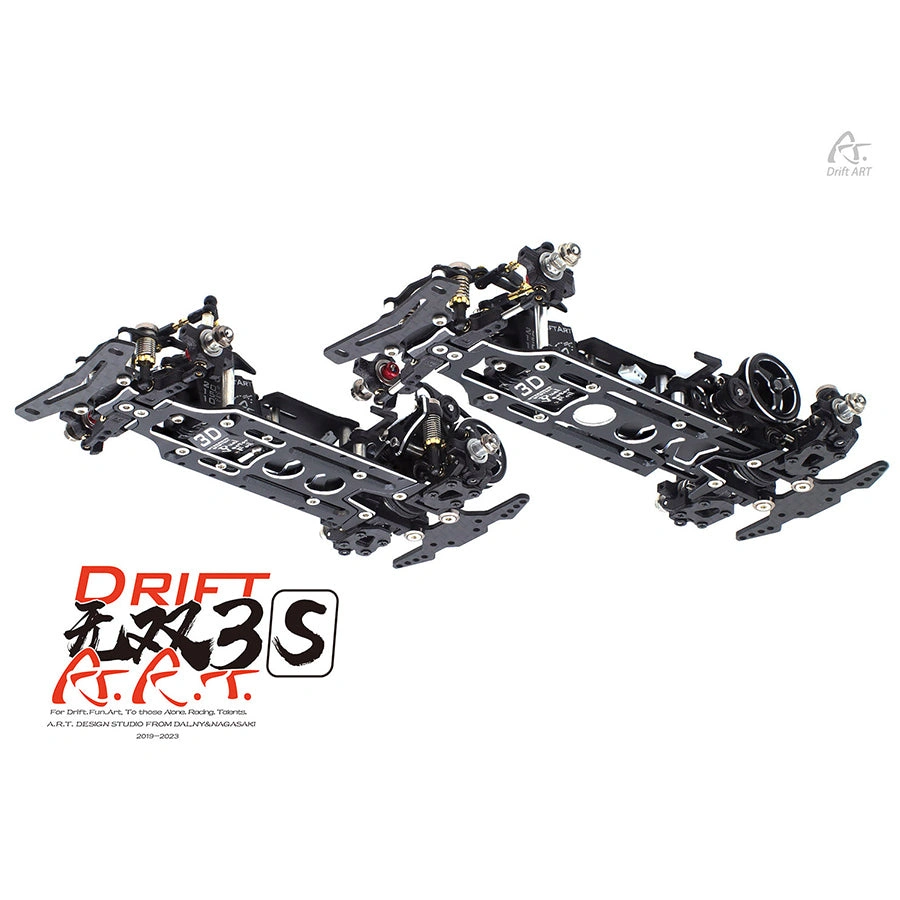

Metal bottom chassis (7075 front, 6061-T6 main)
7075 front pre-assembled front swing arm, smooth, no empty space.
6061 main parts are refined and light.
Chassis expansion parts can be installed to make the chassis more wide. (Option parts sold separately)
Abundant kit layout and structural changes.
The links installation are rich: T-shaped high-mounted (wide/narrow array), T-shaped inverted (wide/narrow array), V-shaped (wide/narrow array).
The battery holder has features of modularization, can adapt to batteries of various sizes, and can carry out rich layouts. Through battery layouts, rich changes in the center of gravity of the chassis can be realized. The DA3S Battery Stand is not only lightweight, but also very easy to use!
The motor layout is changeable. Through the newly designed motor mount and gearbox, the motor layout realizes a total of 120 degrees of infinite angle adjustment.
The gearbox can be turned over, the motor layout position is doubled, the change of 120 degrees x2 = 240 degrees, and the rear motor or battery can also be realized.
High precision ball heads and the cups are perfectly matched, smooth and free of voids.
Nylon parts are pre-through holes and pre-tapped threads, with excellent precision and assembly experience.
The level of CNC processing is high, the size and quality of the parts are reliable, and both the precision and the appearance are of a high standard.
