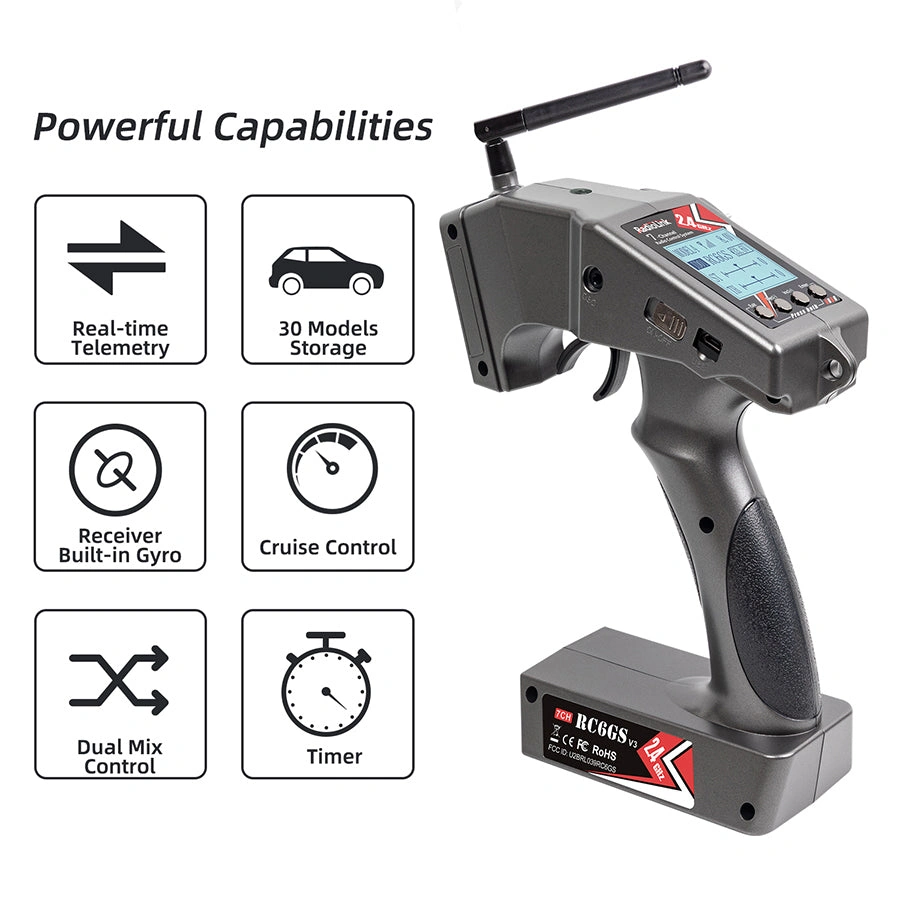

Unleash Your RC Beast RadioLink RC6GS V3 Radio & R7FG Receiver Combo Ultimate Control & Performance
Alright listen up buttercup because this ain't your grandma's description This [商品名称] is the real deal a slice of pure awesome forged in the fires of cool It's gonna make your friends jealous your enemies weep and your life infinitely more interesting Think of it as a secret weapon for your everyday adventures a touch of magic a sprinkle of badassitude Whatever you do dont just stand there Grab it before it vanishes into the digital ether You know you want it We all do
RadioLink (#RC6GSV3) RC6GS V3 w/ R7FG 2.4GHz Radio System
600 Meters Ground Distance
With the same FHSS spread spectrum of AT9S Pro and 67 channels, pseudo-random frequency hopping makes RC6GS V3 have the superior anti-interference ability both at the same frequency band and different frequency bands.
With the transmitter chip of ARM M4 and the receiver chip as the industrial 32bits ARM Cortex M0, ensuring the superior ability of anti-sparks interference even enjoy with an oil tanker.
7 Channels for Multiple Types of Models
RC6GS V3 is an ideal partner for all types RC cars and boats in the market including single-engine and twin-engine models such as Crawlers, Tanks, Caterpillars, Basher, RC Short-Course Truck, RC Crawler, Drifting RC Car, Gasoline RC Car, Mini RC Car, RC Monster Truck, Off-Road RC Car, GP RC Car, EP RC Car, Sailboats, Trimaran, Bait Boat, Remote Controlled Lifebuoy, and other types of RC cars or boats.
Real-time Built-In Telemetry of Model Battery Voltage
Telemetry is capable of RSSI, receiver, and model battery voltage. RSSI and receiver voltage data will display once binding complete. The model voltage will display by connecting the wire to the ESC, battery, and Telemetry port of receiver R7FG/R8F, no extra module needed.
Telemetry of maximum 8S (33.6V) battery supported.
Cruise Control System
Crawler is difficult in controlling the throttle on the downhill slope, the cruise control system of RC6GS V3 helps the driver easily set the optimal throttle volume for RC crawler car.
Dual Programmable Mix Control
7 channels transmitter. Arbitrary 2 channels can be easily set as mix control, easy to understand.
For crawler: CH1 is the rudder, CH2 is the throttle, CH3 can set up to control the transfer case, CH4 can set up to control the shift gear, CH5 can set up to control the front locker, CH6 can set up to control the rear, and CH7 can set to control the capstan.
For Timber Truck: dual programmable mix control makes front wheel mix with rear-wheel come true, which can reduce the turning radius.
Multiple Function for DSC Port
The DSC port of RC6GS V3 can set as the Simulator Function(support VRC Pro，CarX, Assetto Corsa Competizione, and etc. simulators), the FPV Head Track Function(3-axis or 2-axis track can be selected), or the TBS Crossfire Function.
FPV Head Track Function
RC6GS V3 used FPV goggles to control the up, down, left, and right movement of the camera on the RC car. What's more, RC6GS V3 is compatible with TBS Crossfire by connecting it to the DSC port.
Get more than 600 meters of controller distance by connecting to the TBS crossfire, and work with the FPV head track function to fully enjoy the funny of First-Person View of racing or crawl.
Timer Function
The timer function of the RC6GS V3 allows you to grasp the lap and complete track results in time to help you train yourself before the race.
Receiver with Gyro Integrated and Customizable Gyro Sensitivity
Standard receiver R7FG packed is the receiver with built-in gyro and supports high voltage servo.
It is anti-slip and keeps the uni-direction. With the integrated gyro in R7FG installed, the vehicle turns more smoothly, and drifting from high speed can be prevented.
The easy setting ensures better control of gyro stabilization.
Gyro sensitivity can be adjusted by STD or CH3 which is controlled by VR switch by default to maximize or minimize the gyro function.
Water Splash Proof (IPX4) for Receiver R7FG
A receiver R7FG will packed with RC6GS V3.
The PCB board and pins of R7FG have the same waterproof treatment as the mobile phone, that is, nano-coating technology treatment and the waterproof grade is IPX4.
IPX4: The IP×× rating standard recommended by the International Electrotechnical Commission (IEC).

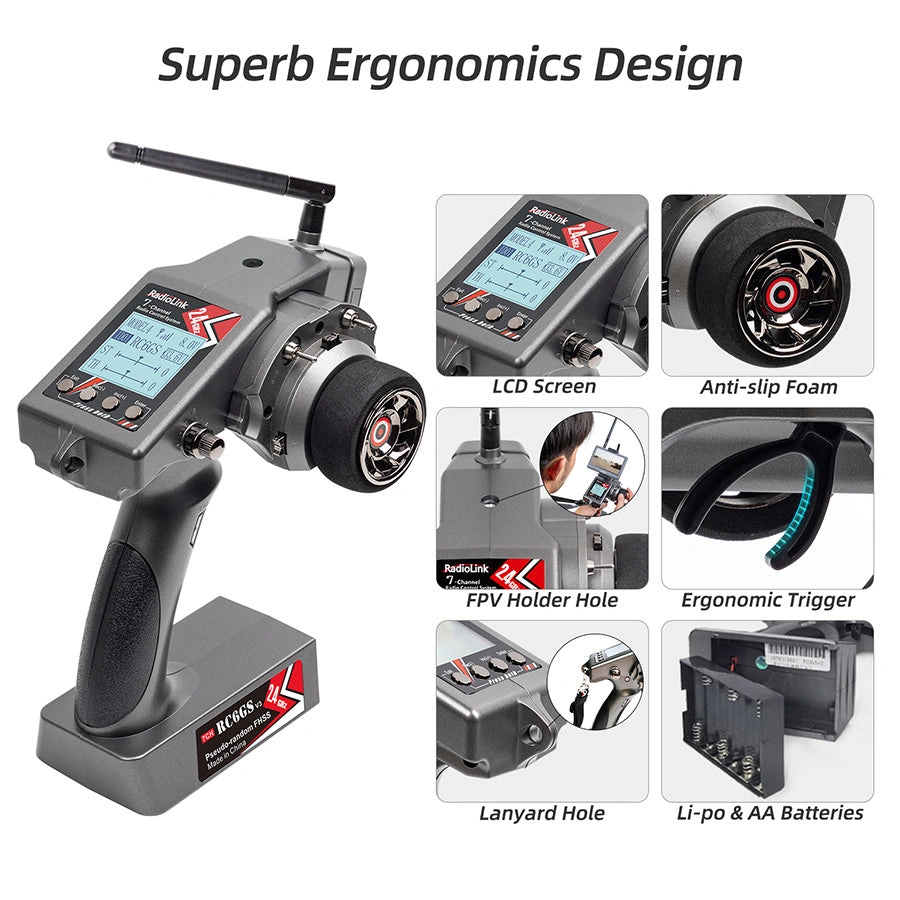

Performance Upgrade: Ergonomically Designed for Hours of Fun
Base on the feedback of hundreds of experienced RC racers, we redesigned the throttle trigger, the thickness of the grip, and the location of each switch to achieve a better comfortable driving experience.
Reverse Polarity Protection Circuit
RC6GS V3 is easily adapted for various battery layouts with wide operating voltage tolerance: 6pcs of AA batteries or 2S-4S LiPo or 18650 Lithium battery.
Universal JST connector with the voltage protection software of Radiolink ensures vital components are protected from a reverse polarity connection.
USB Upgrade
The RC6GS V3 is easily updating by the computer via a USB cable. Intuitive software hint guides you through the process. Note: The USB port only for upgrade, do not use it for charging.
Wide Compatible
RC6GS V3 is packing with a receiver R7FG.
R7FG is a 7 channels receiver with gyro built-in, high voltage servo support, and model voltage telemetry support.
RC6GS V3 is also compatible with the 4 channels mini receivers R4FGM/R4F designed for Mini RC cars, the 6 channels receivers R6FG/R6F, and the 8 channels long control distance receivers R8EF/R8F, which designed for RC boats.
- Frequencies Band: 2.4GHz ISM band (2400MHz~2483.5MHz)
- Channel Quantity: 7
- Applicable Model Types: Crawlers, Tanks, Caterpillars, Remote Controlled Lifebuoy, and other types of RC cars or boats, Robots
- Modulation Mode: GFSK
- Spread Spectrum Mode: FHSS&67-channel pseudo-random frequency sequence hopping
- Storage Model Quantity: 30 models
- Antenna Length: 106mm (4.17')
- Control Range: 600m(1968.5ft) (Maximum range tested in unobstructed areas free of interference)
- LCD Screen: 128*64 resolution, LCD backlight
- RC4GS V3 Operating Voltage: 4.8-16.8V, 6pcs of AA batteries or 2S-4S LiPo battery
- RC4GS V3 Operating Current: 80-120mA (Depending on power supply)
- RF Power: <20dbm
- Channel resolution: 4096 with regular jitter of 0.5us
- Low Voltage Alarm: Yes, when less than 7.2V or customize on 2S-4S battery, low voltage alarm can be set for each model
- Low RSSI Alarm: Yes
- Low Model Battery Voltage Alarm: telemetry of maximum 8S (33.6V) model battery voltage
- Compatible Receiver: R7FG (std)/R8FG/R8EF/R8F/R6FG/R6F/R4FGM/R4F
- CRSF Protocol Supported: is compatible with TBS Crossfire by connect the TBS Crossfire to the DSC port of the RC6GS V3
- FPV Head Track Function: Supported
- Simulator Function: Supported
- Timer Function: Supported
- Dimensions: 174.8 x 116.4 x 224.2mm (6.88' x 4.58' x 8.83')
- Weight: 319g (11.25 oz)
- Battery Case Dimension: 89 x 59 x 25mm (3.5' x 2.32' x 0.98')
- Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
- Size: 35 x 22 x 13mm (1.37' x 0.86' x 0.5')
- Weight: 6g (0.21oz)
- Channel Quantity: 7 channels
- Signal Output: PWM&PPM/PWM&SBUS
- Model: cars/boats
- Spread Spectrum: FHSS & 67 signal channel pseudorandom frequency sequence hopping
- Antenna Length: 205mm (8.07')
- Power Supply: 3~12V DC
- Channel Resolution: 4096
- Operating Current: 30mA
- Control Range: 600 meters on the ground
- Real-time Telemetry: The model voltage will display by connecting the wire to the ESC, battery, and Telemetry port of receiver R7FG, no extra module needed.Telemetry of maximum 8S(33.6V) battery supported.
- Compatible transmitter: RC8X/RC6GS V3/RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101)/T8S/T8FB

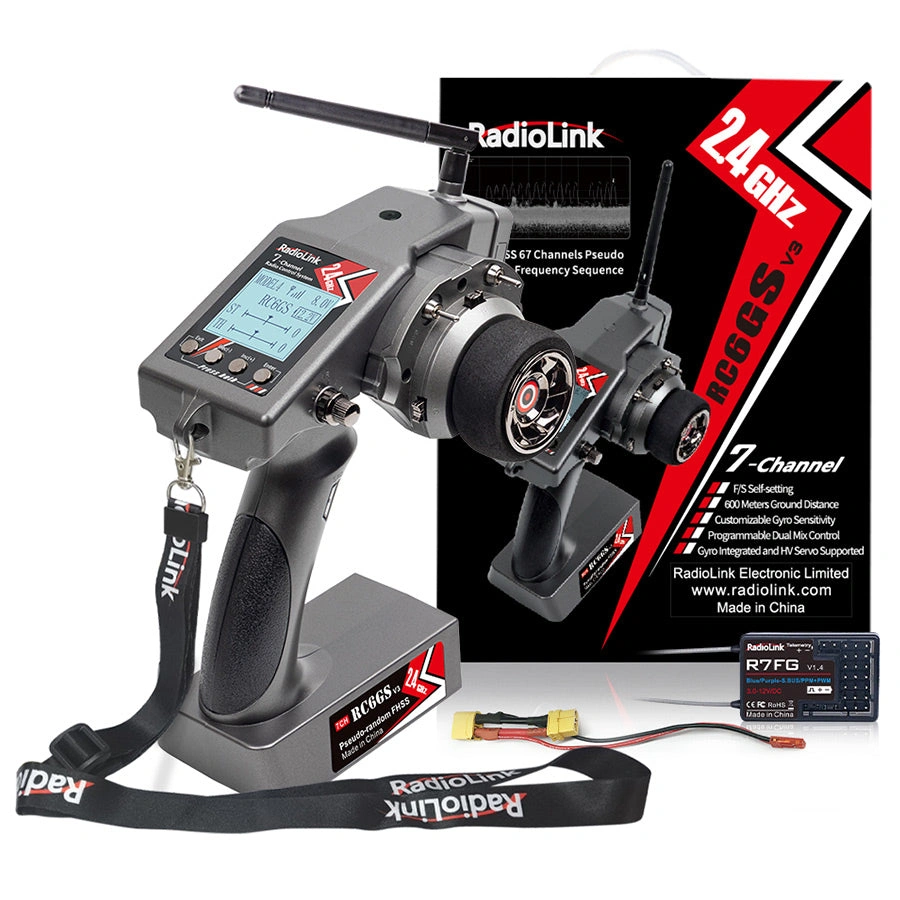

- RadioLink (#RC6GSV3) RC6GS V3 (1 pc)
- R7FG 2.4GHz Receiver (1 pc)
- Model Battery Voltage Telemetry Module Cable (1 pc)
- Lanyard (1 pc)
- Manual
